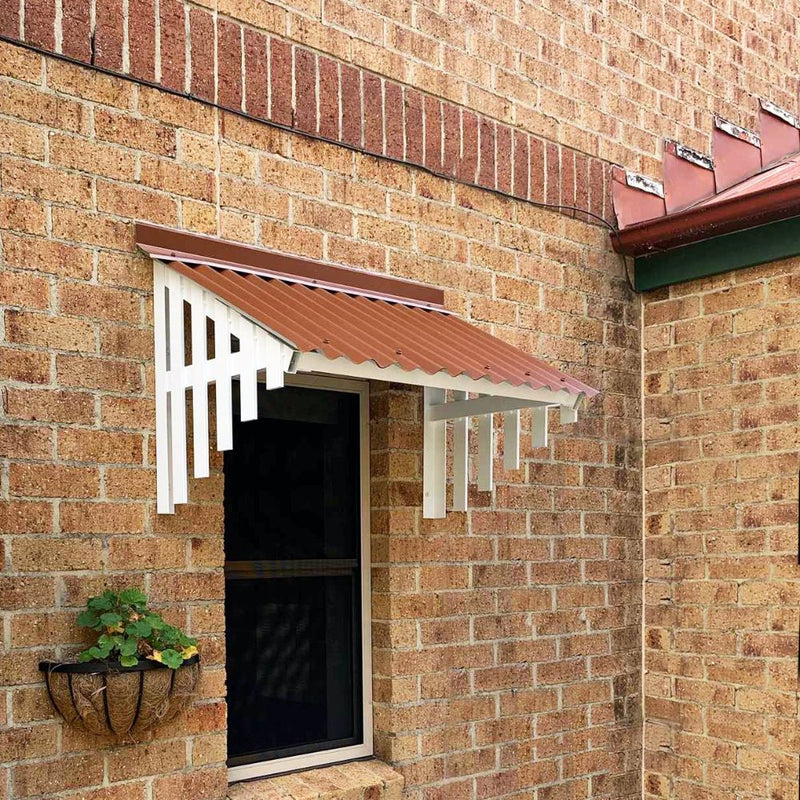

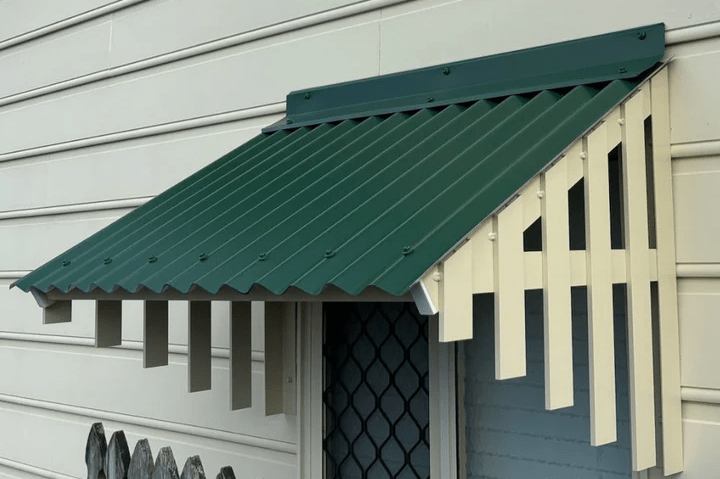

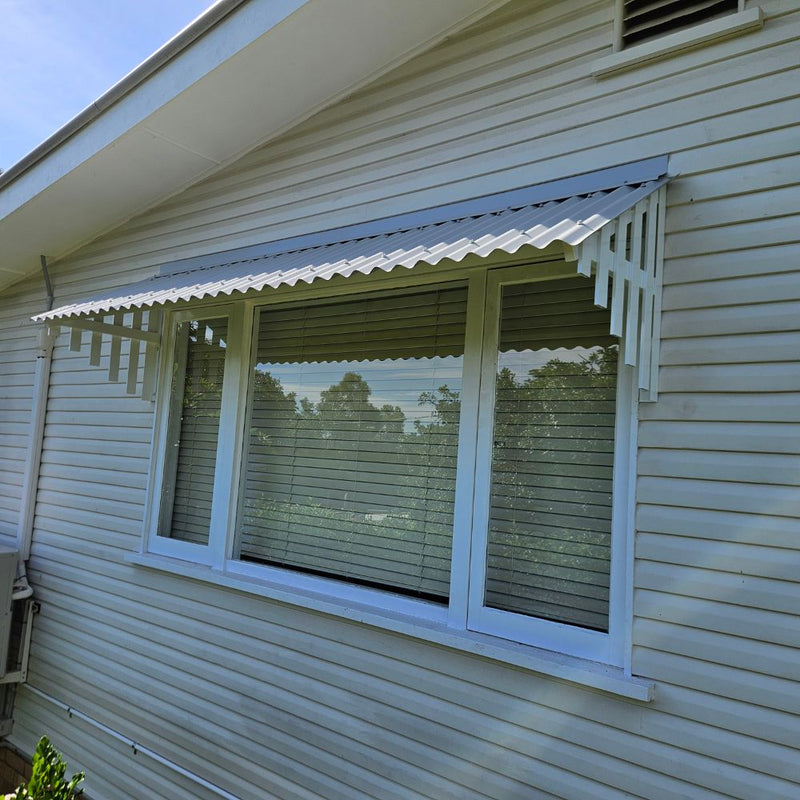

Discover the elegance and practicality of Window Hoods from Eco Sustainable House, your premier choice for adding a touch of heritage charm to your home while enhancing its energy efficiency.

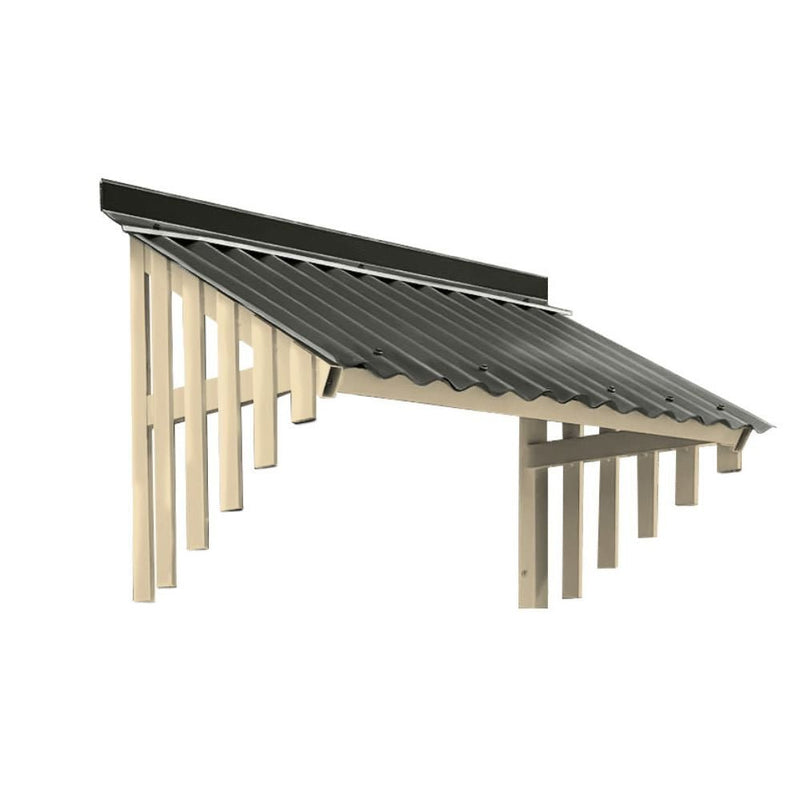

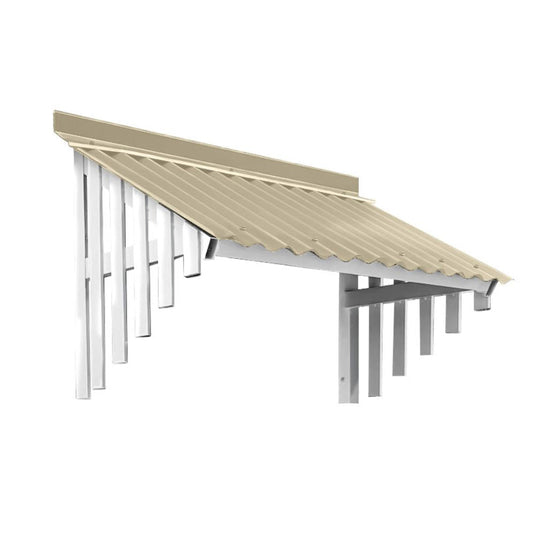

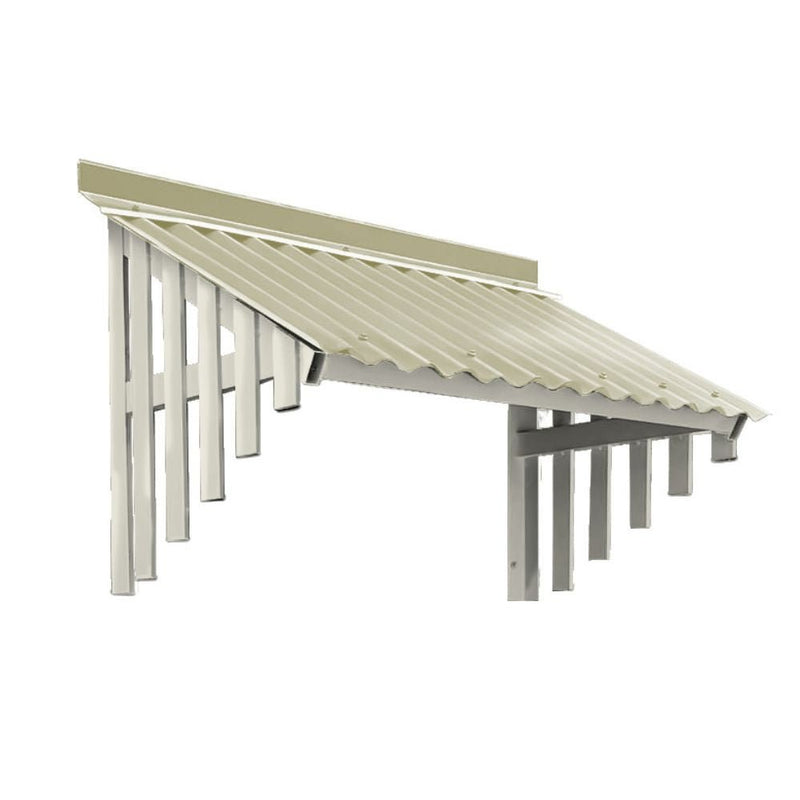

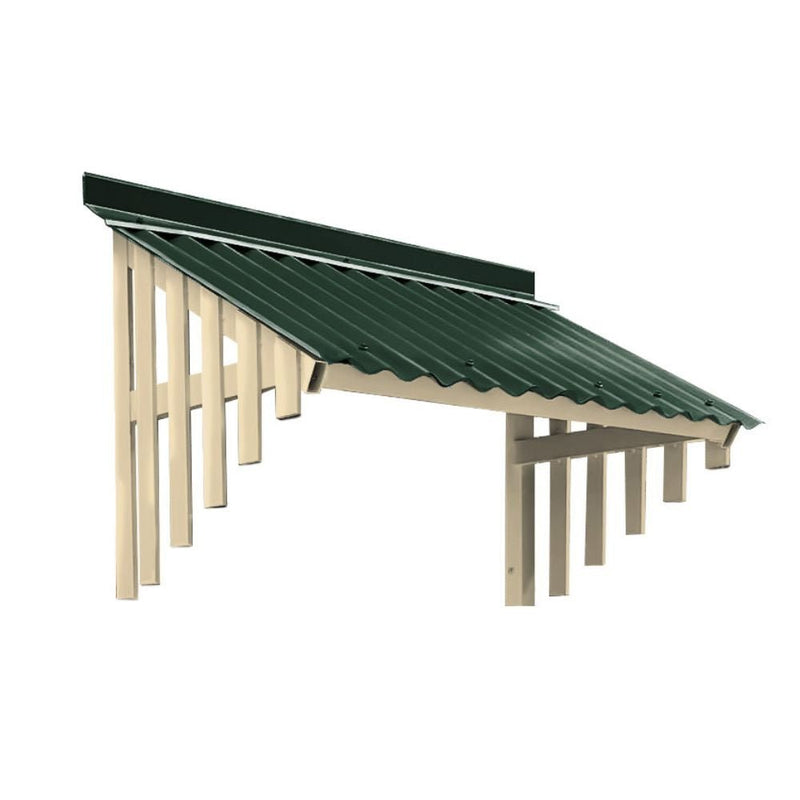

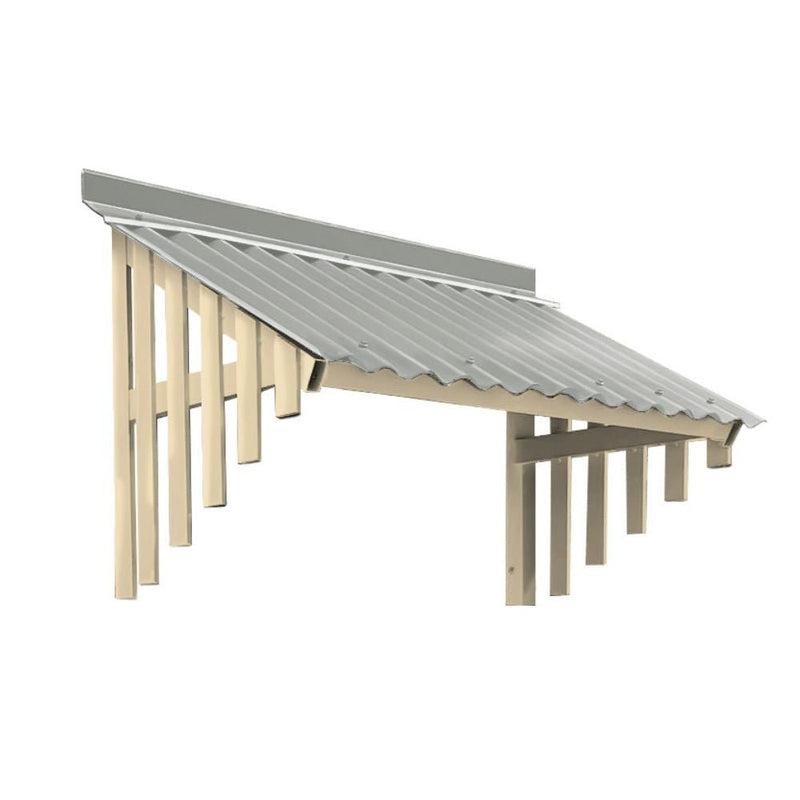

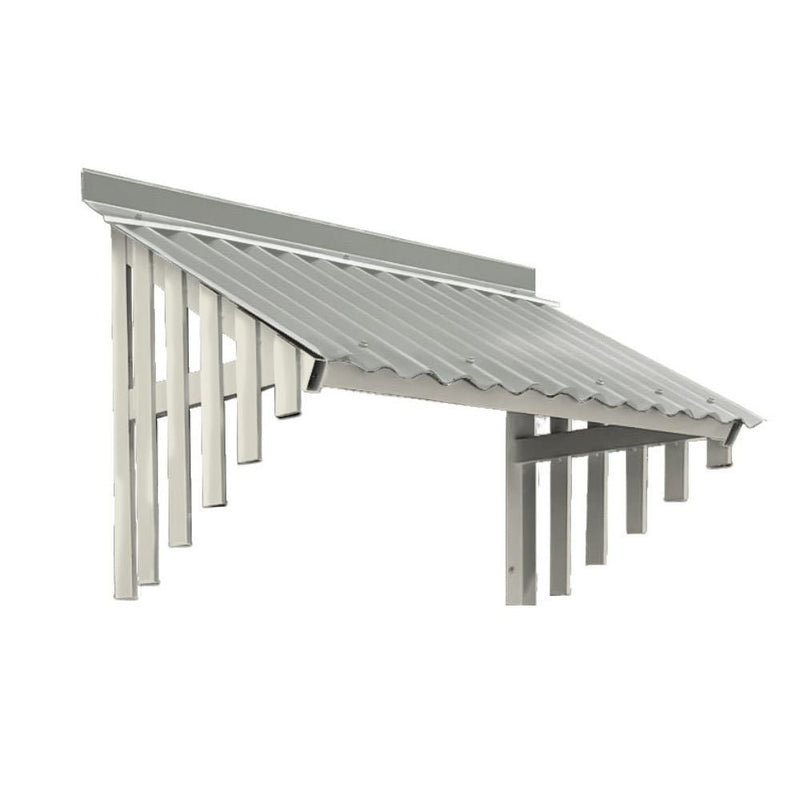

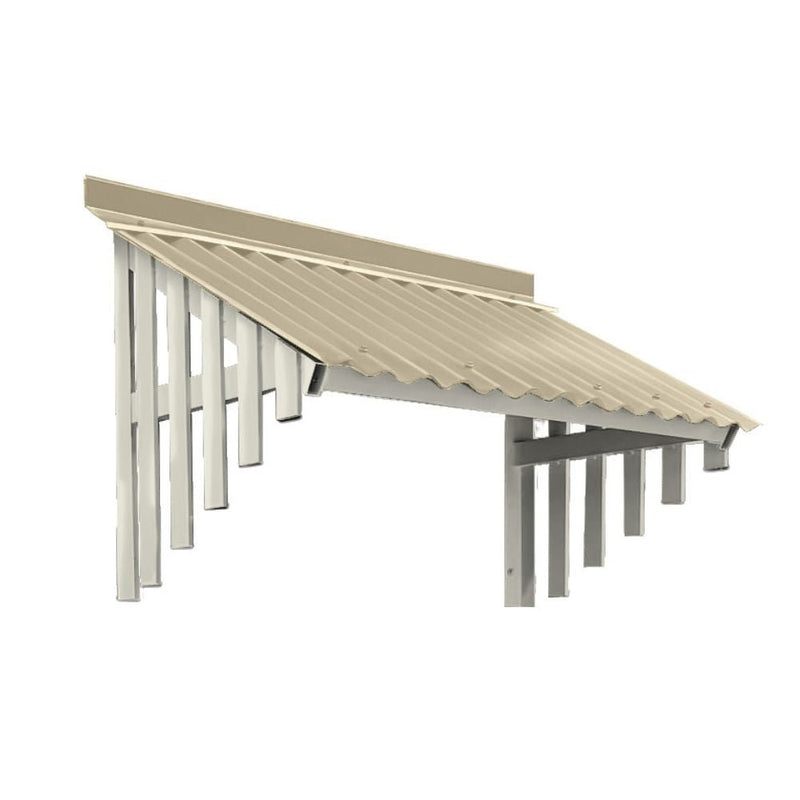

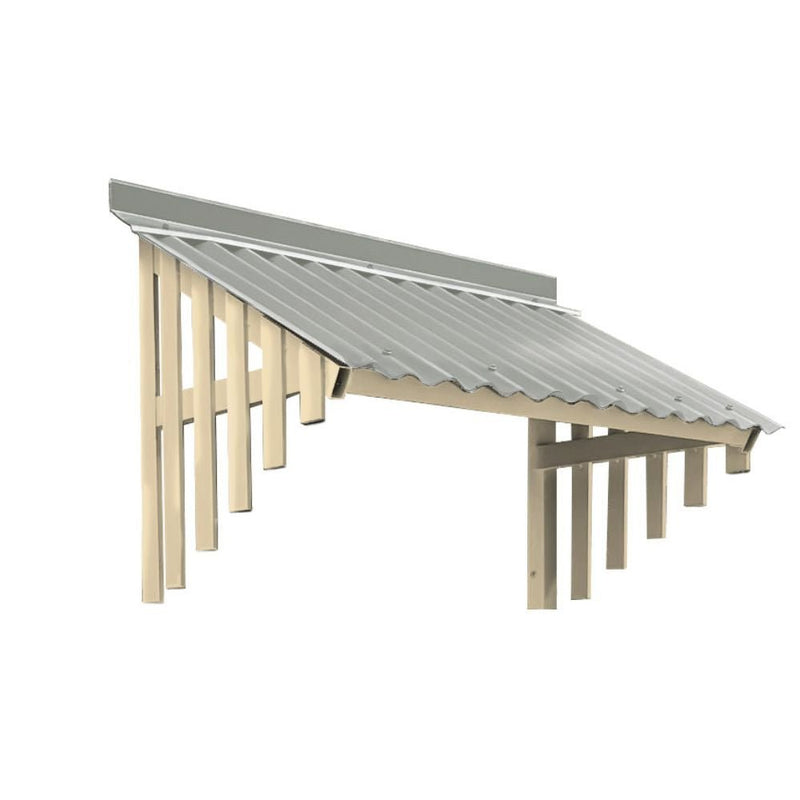

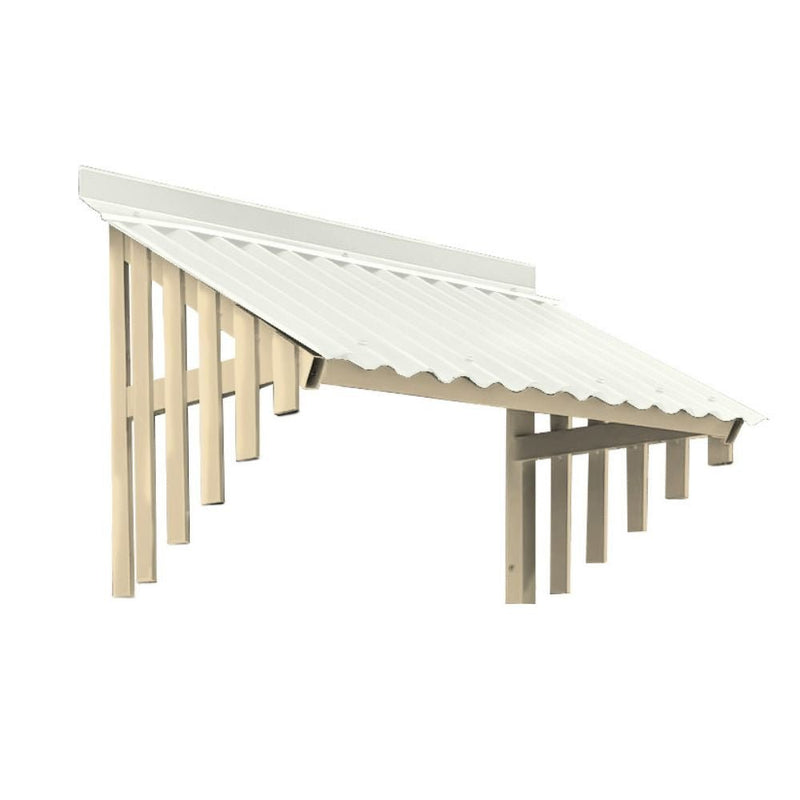

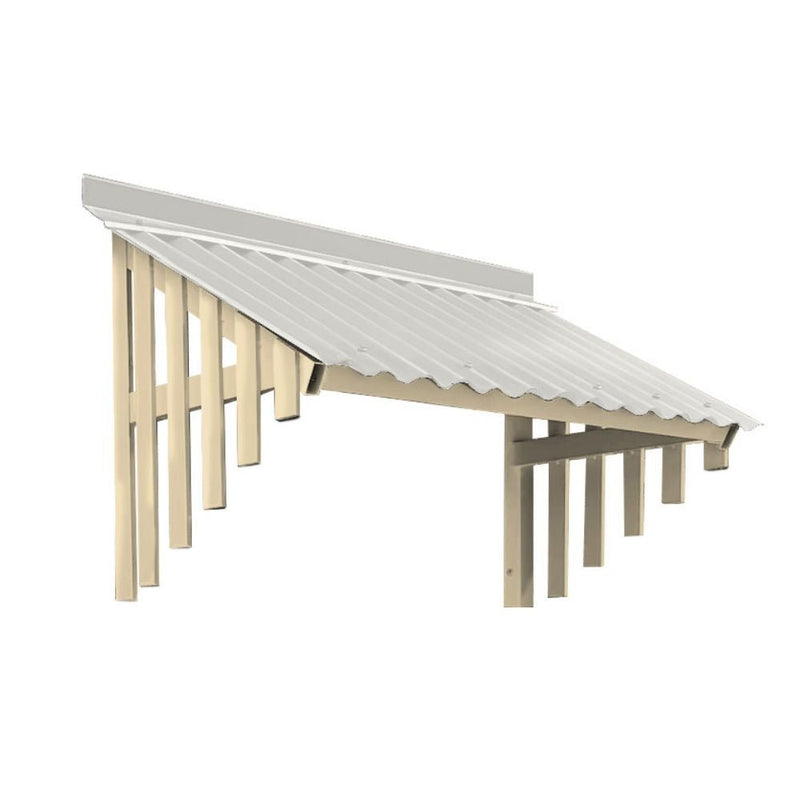

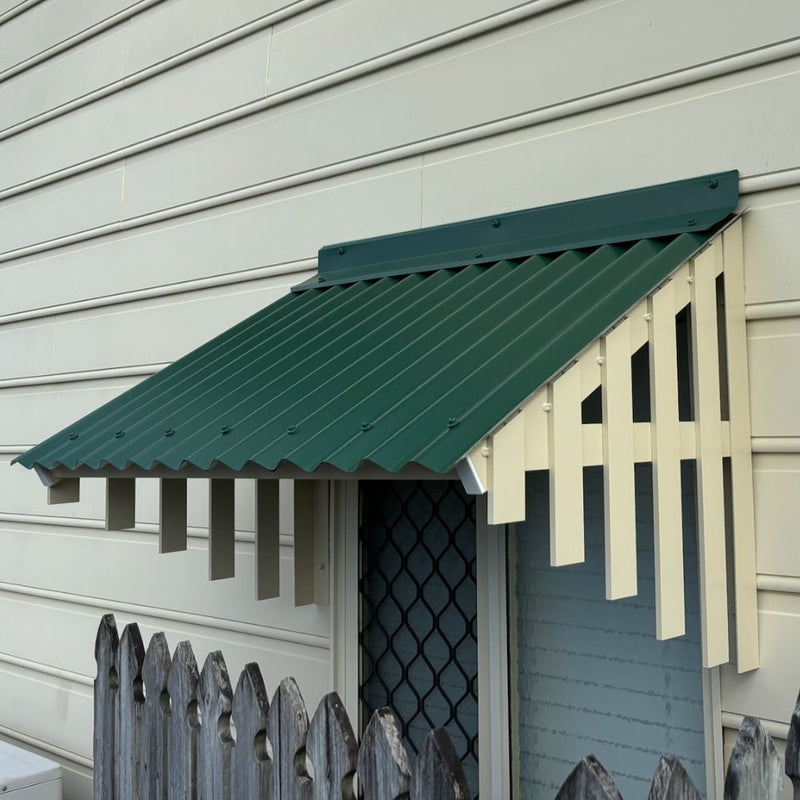

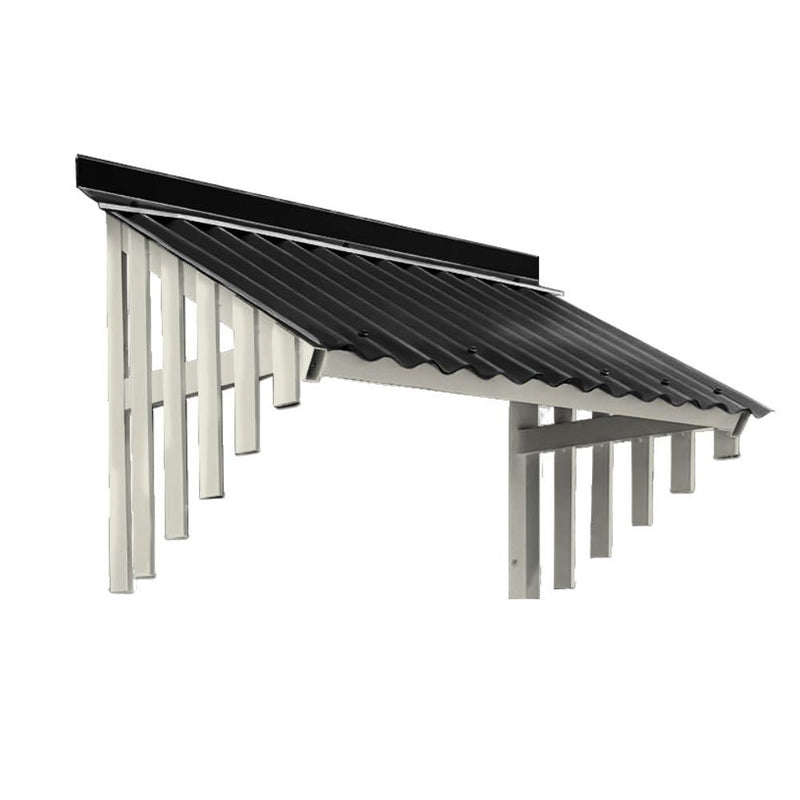

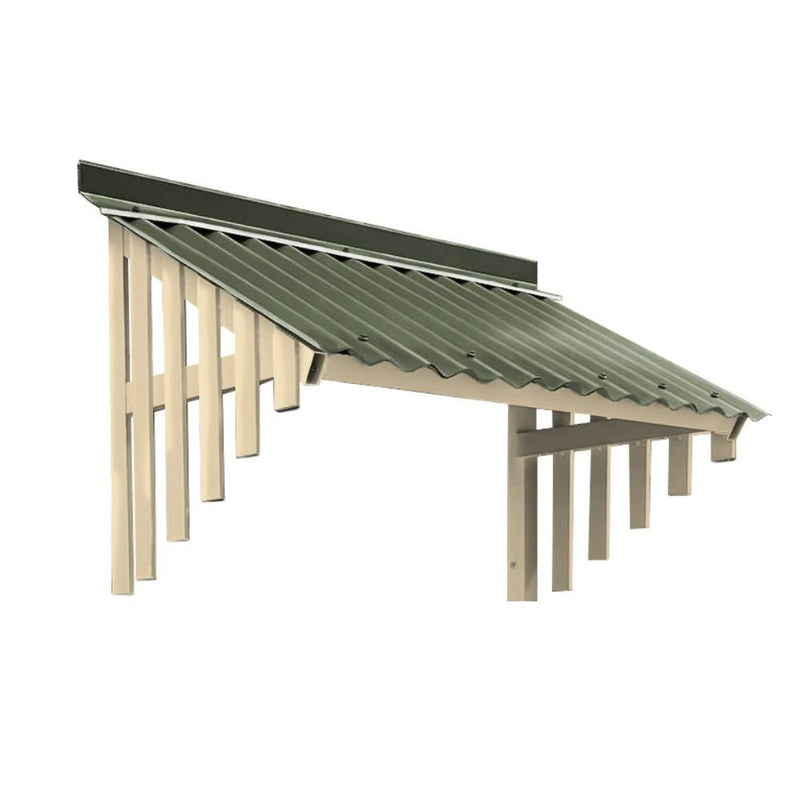

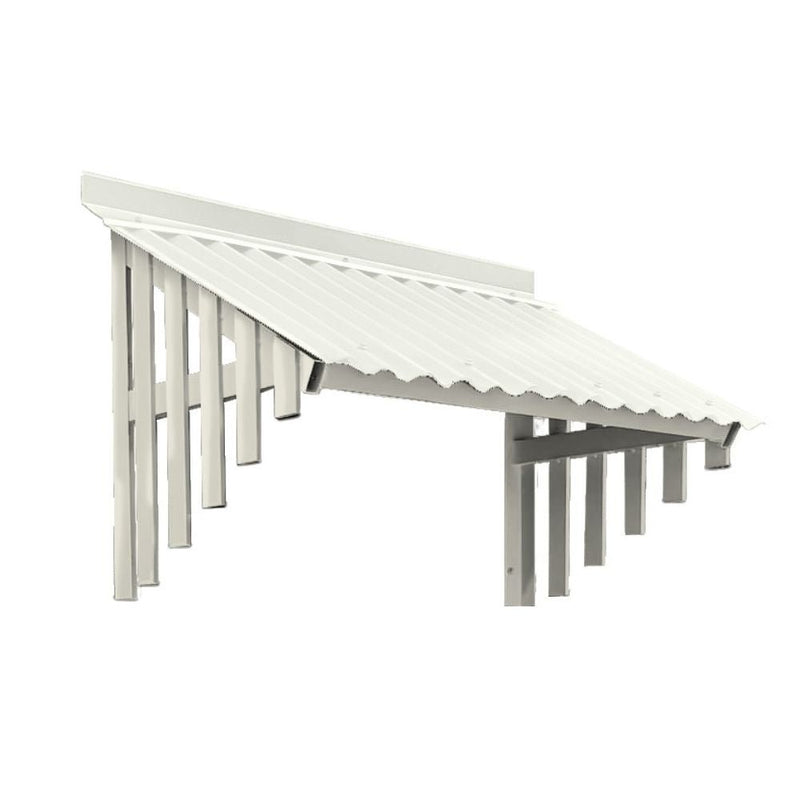

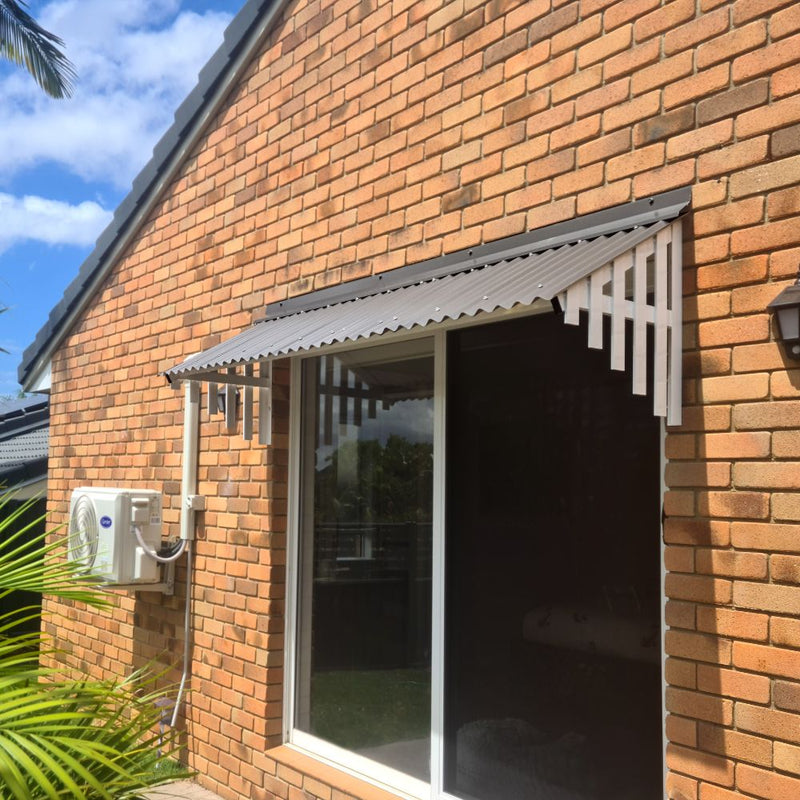

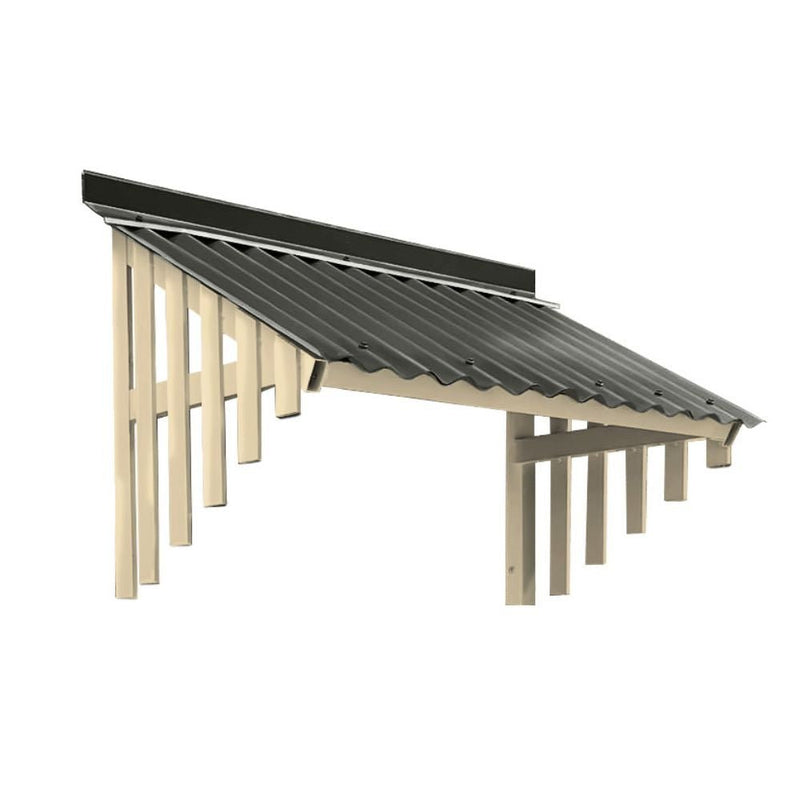

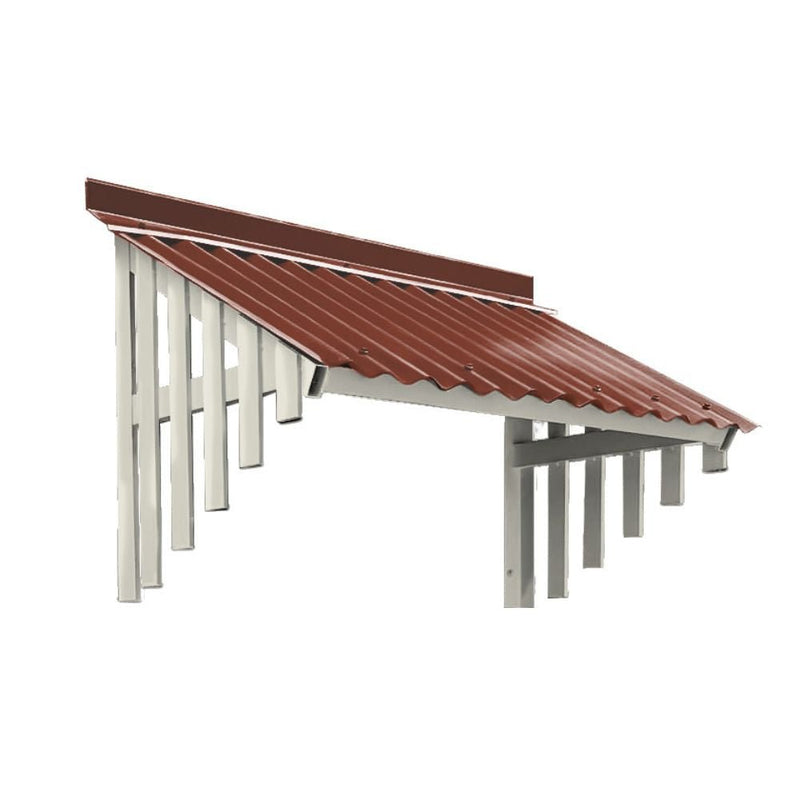

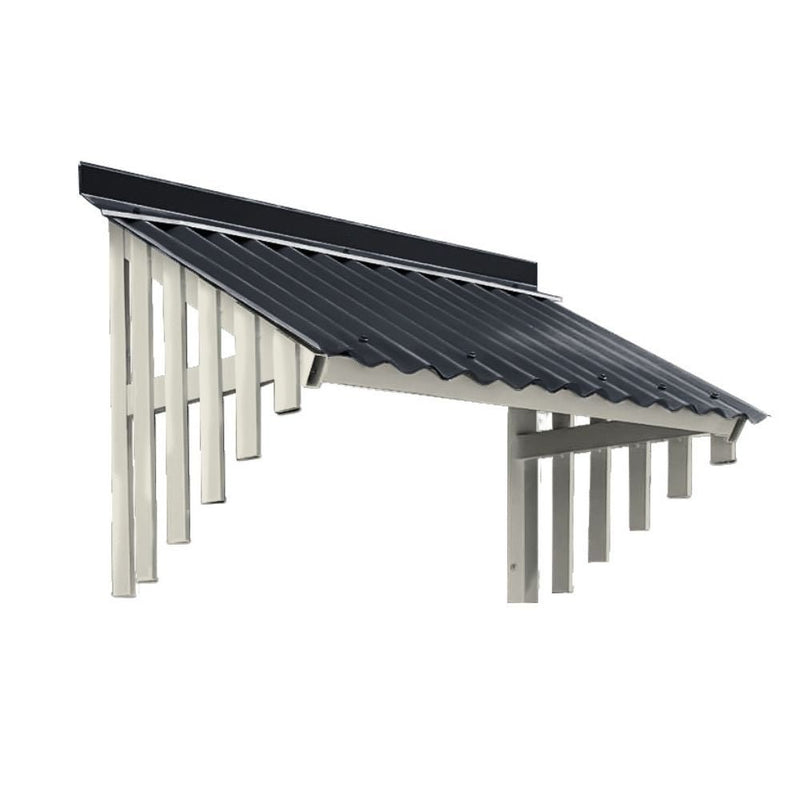

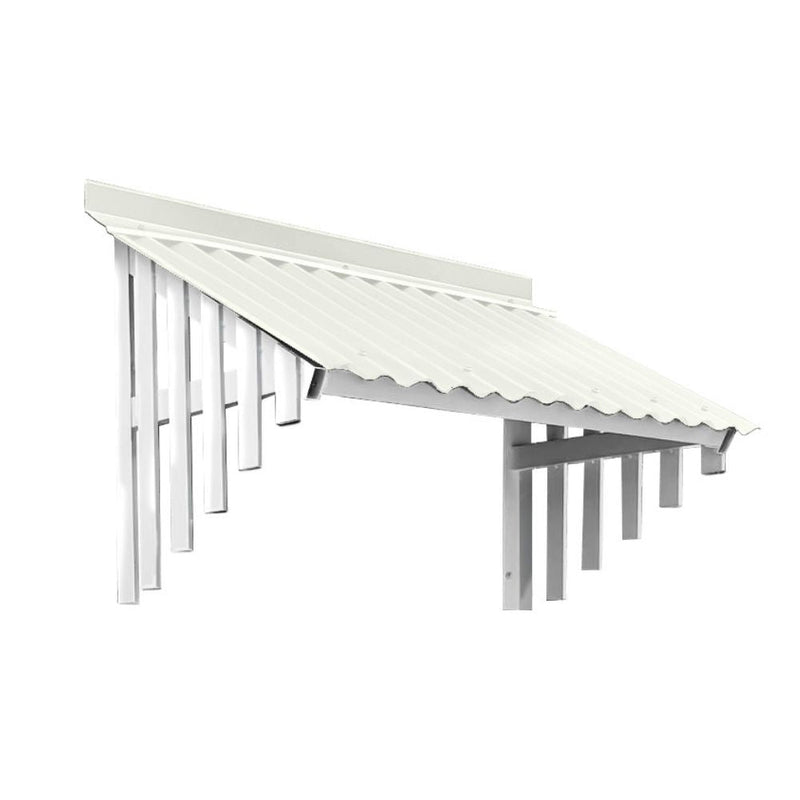

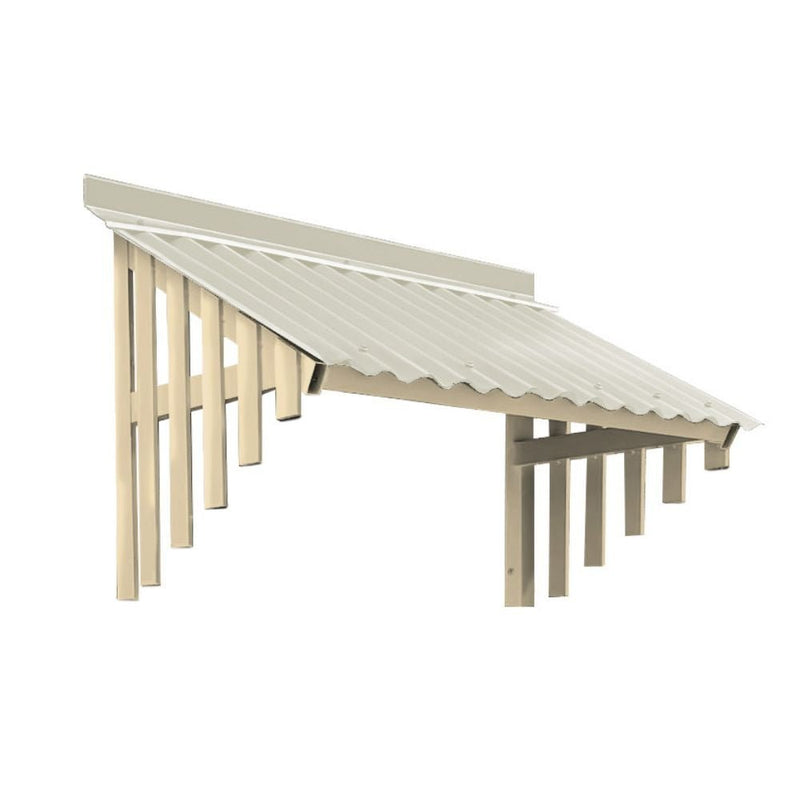

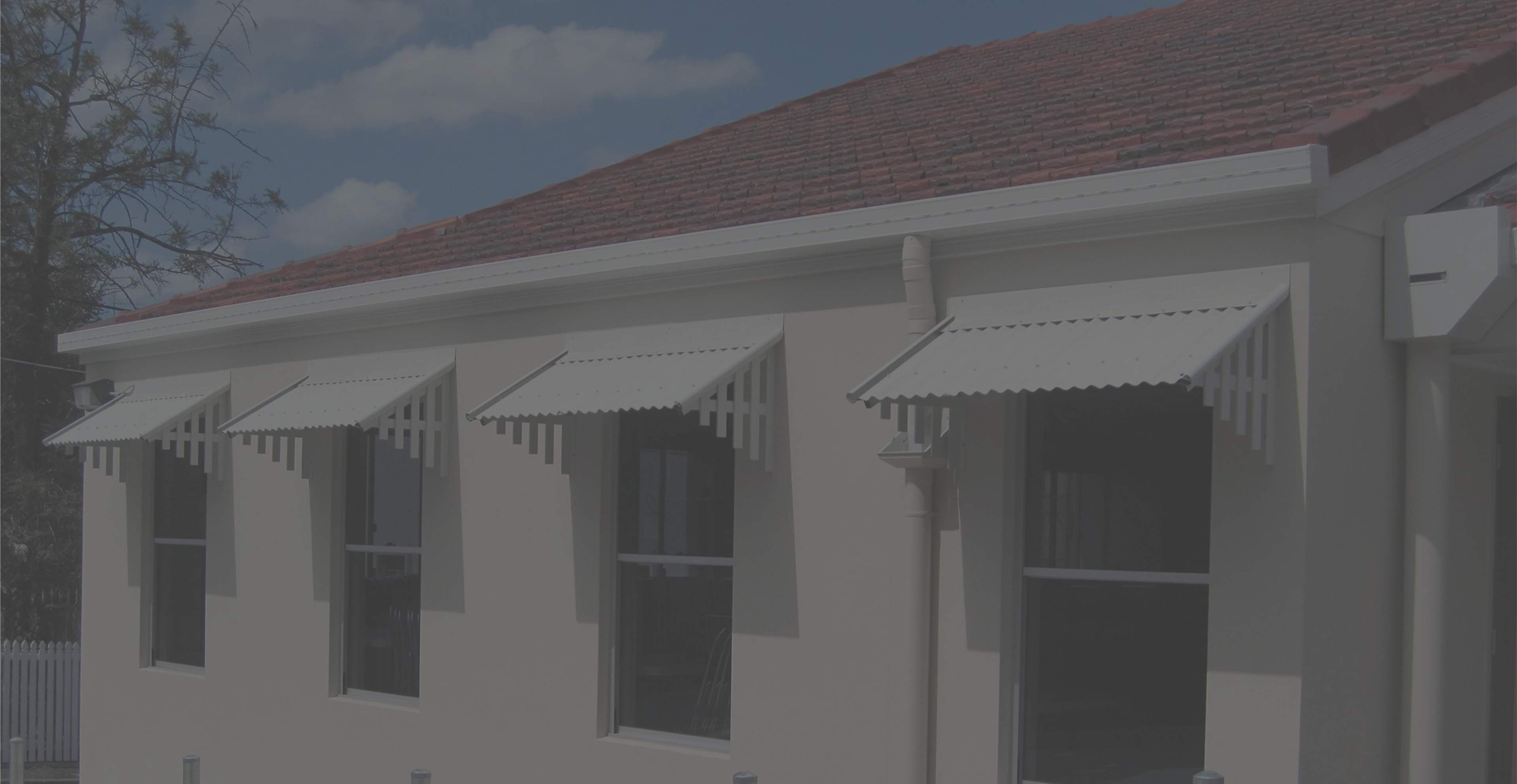

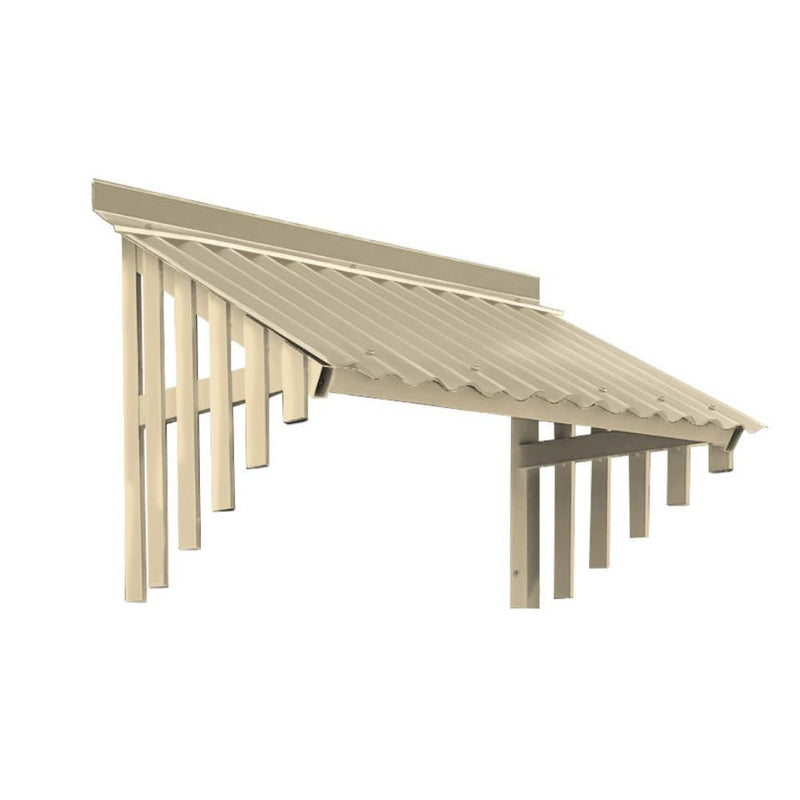

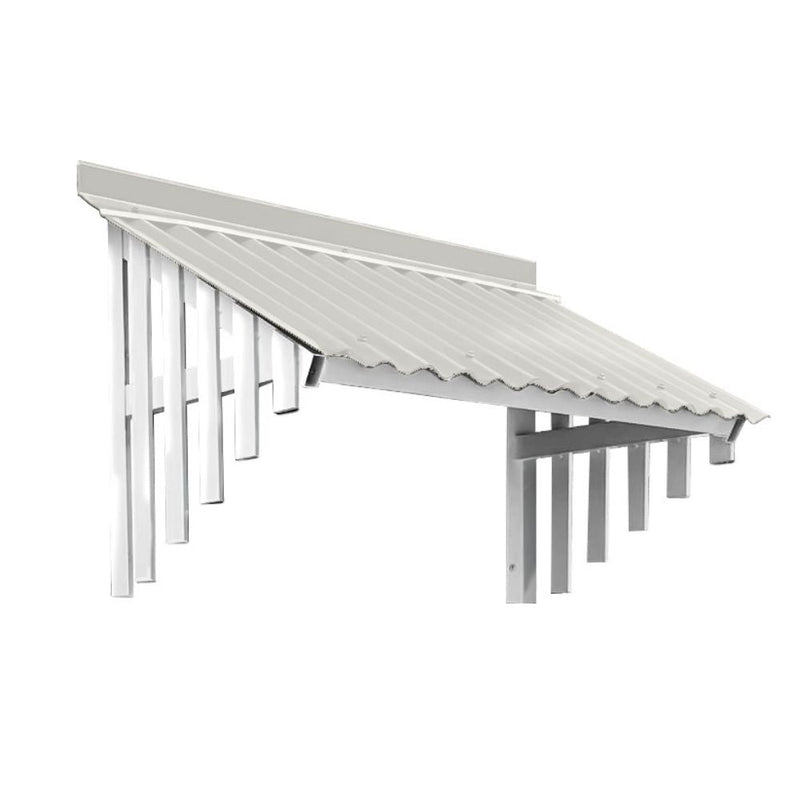

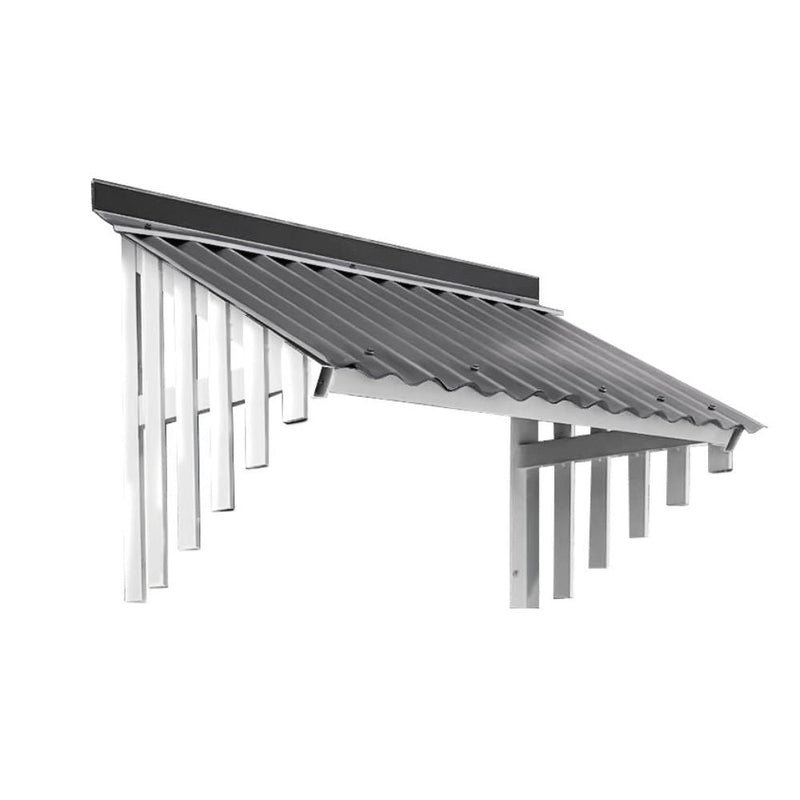

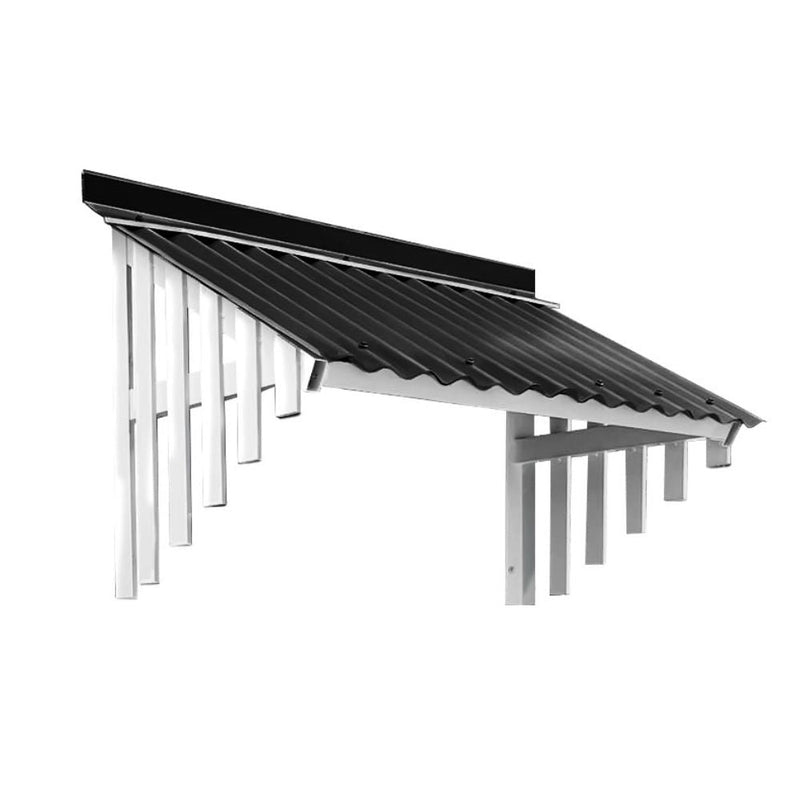

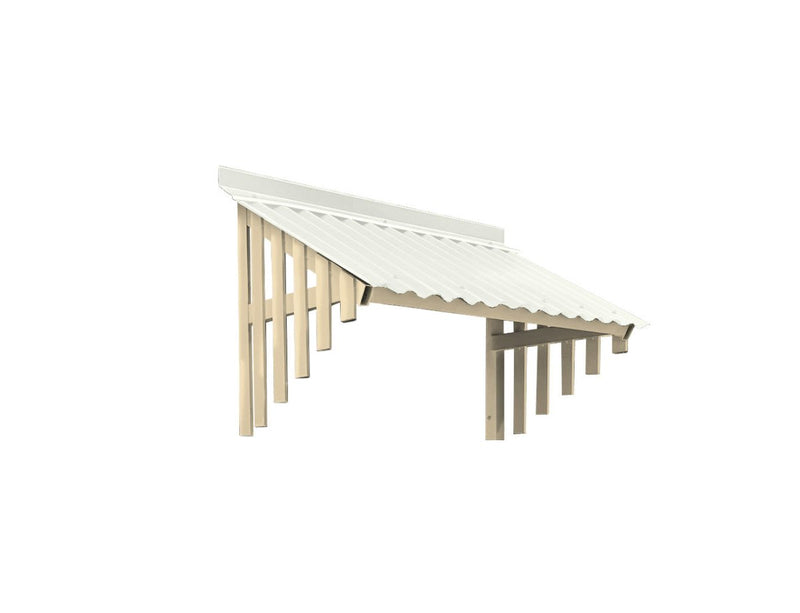

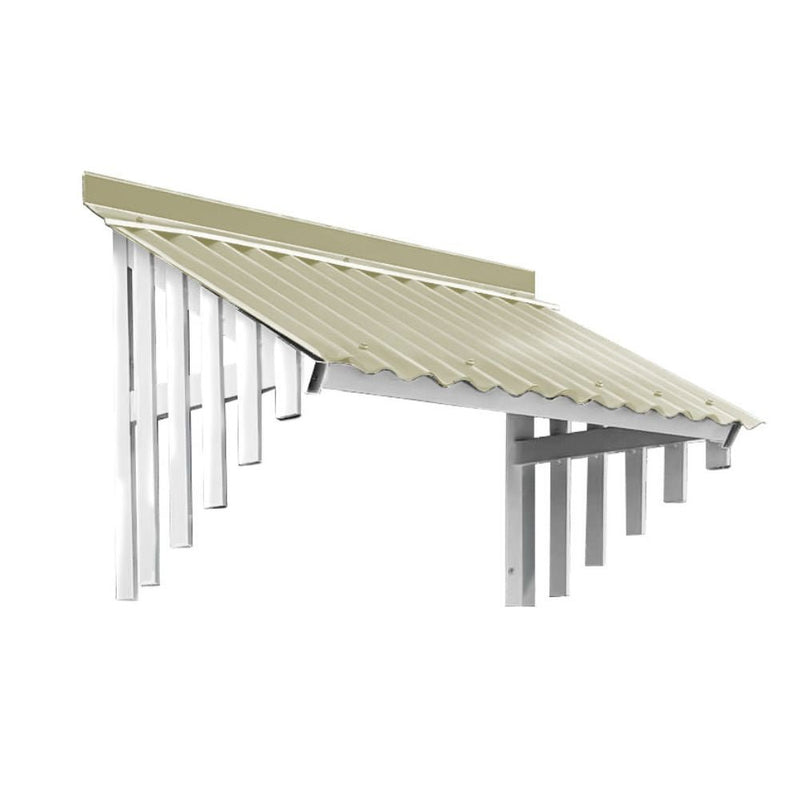

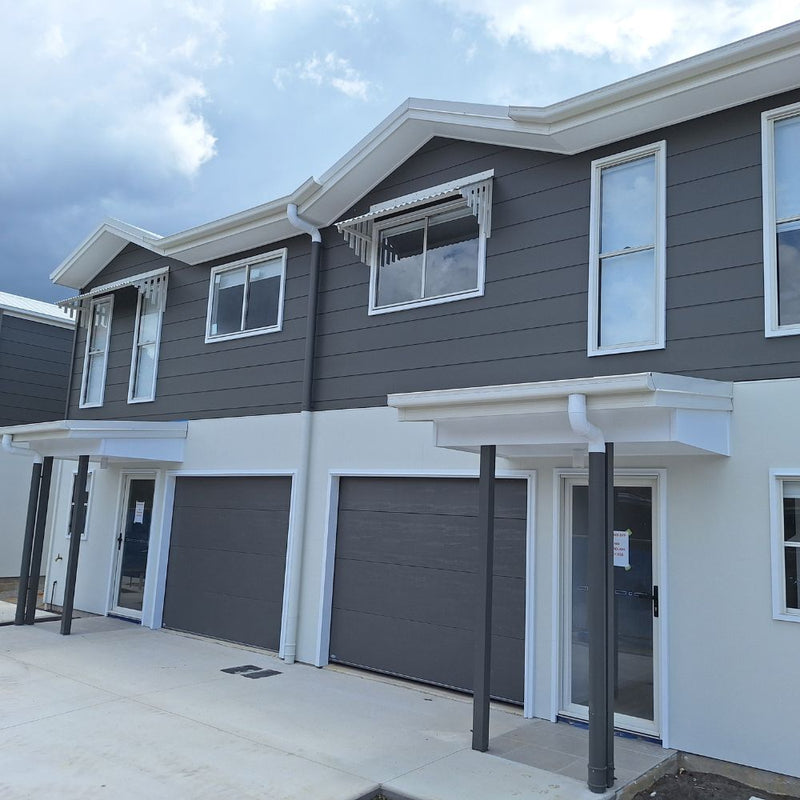

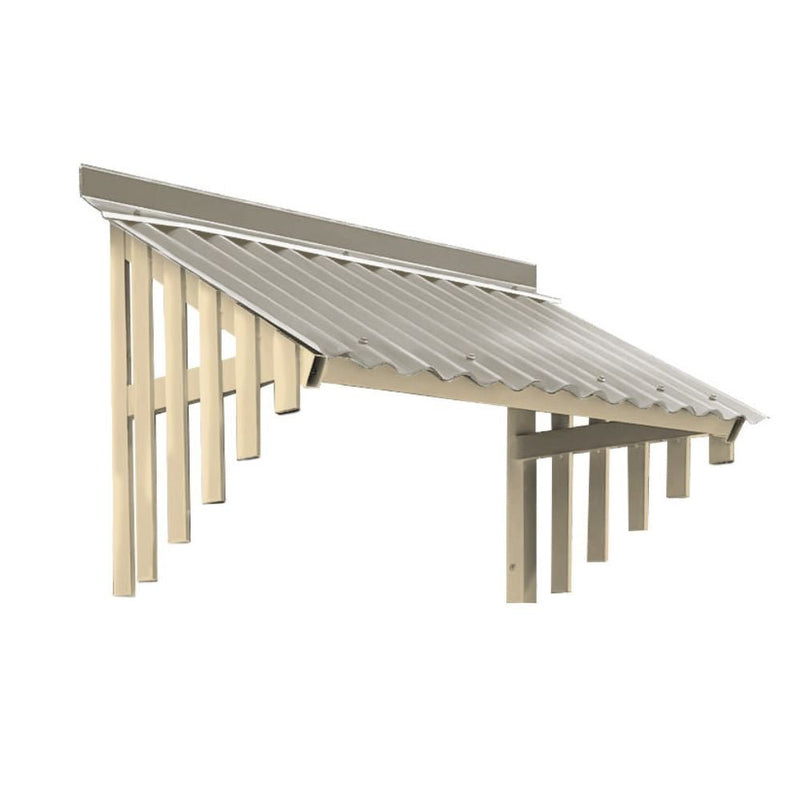

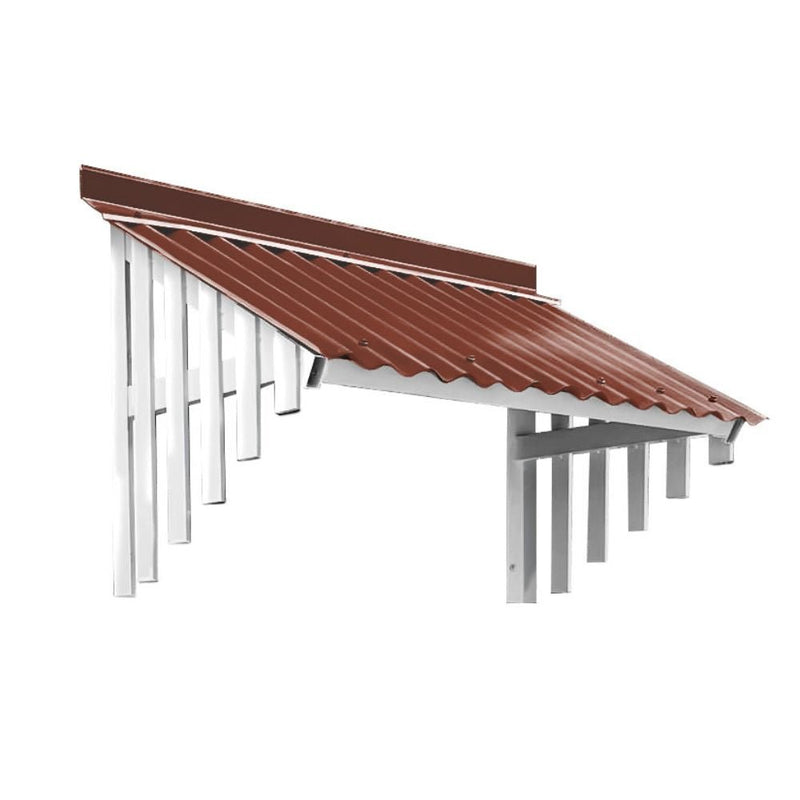

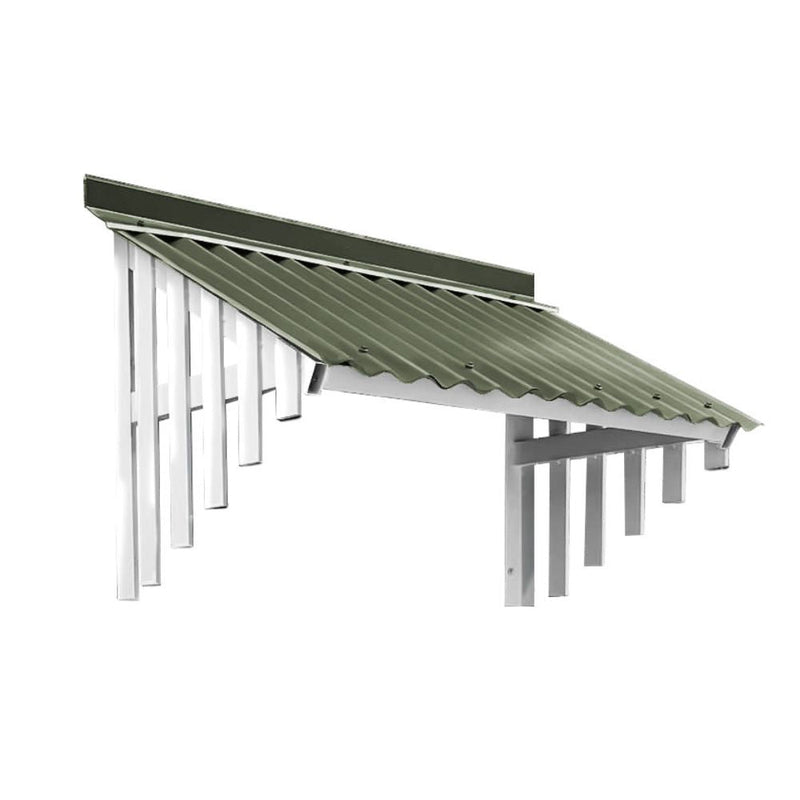

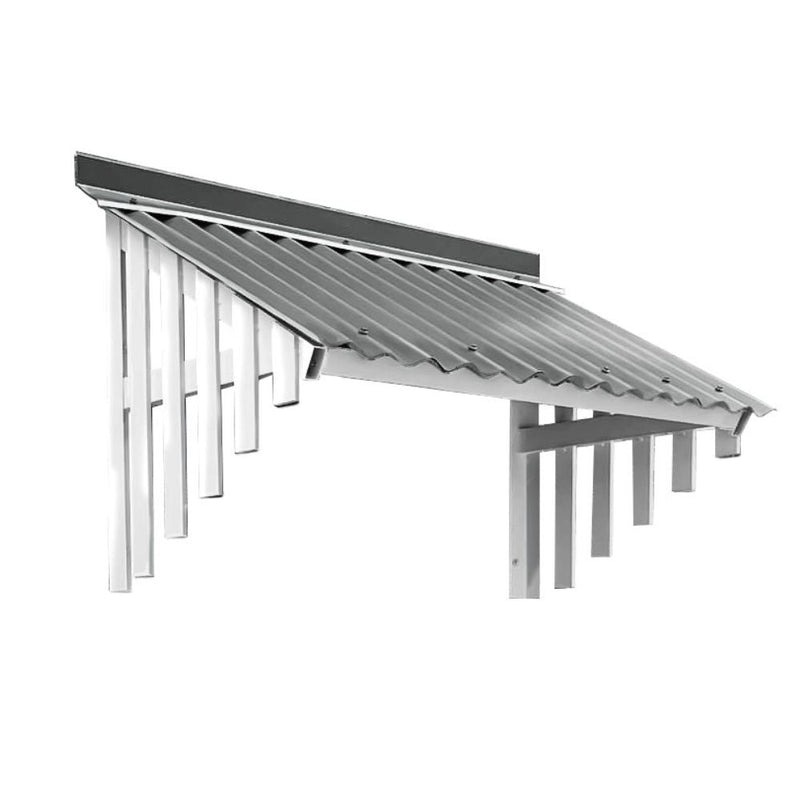

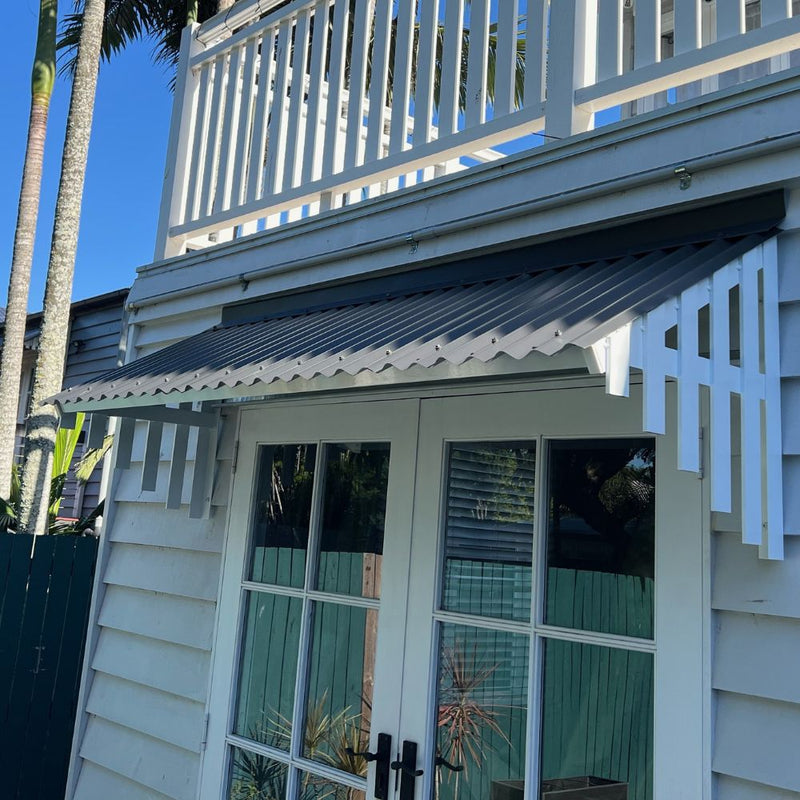

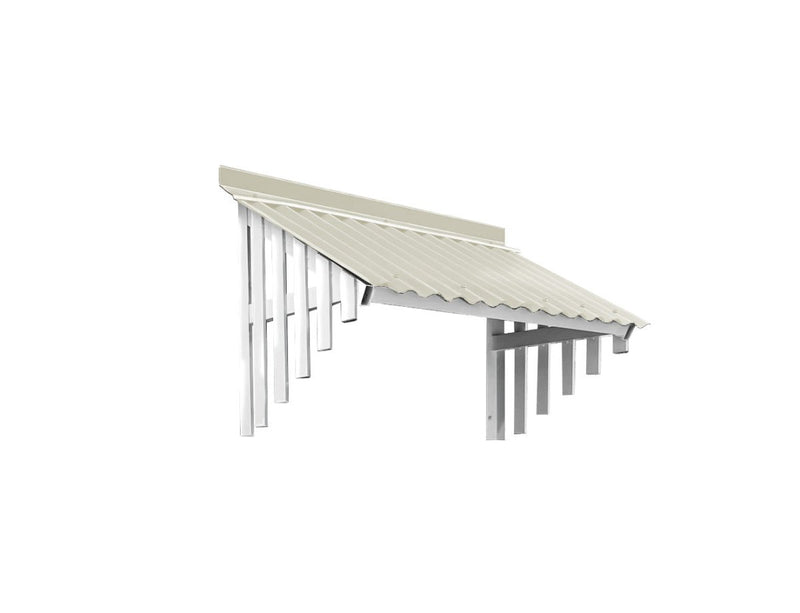

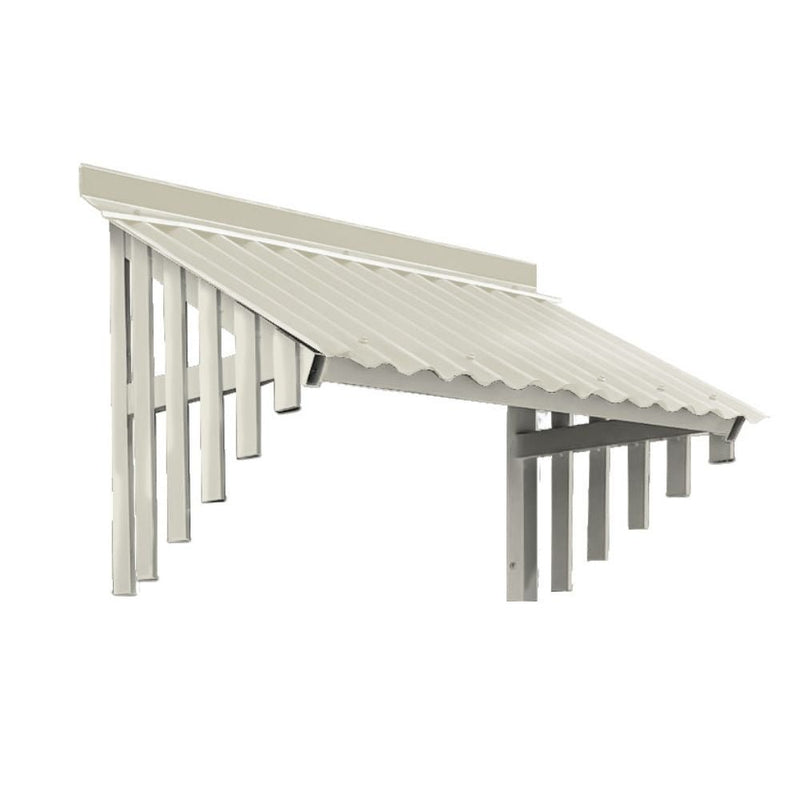

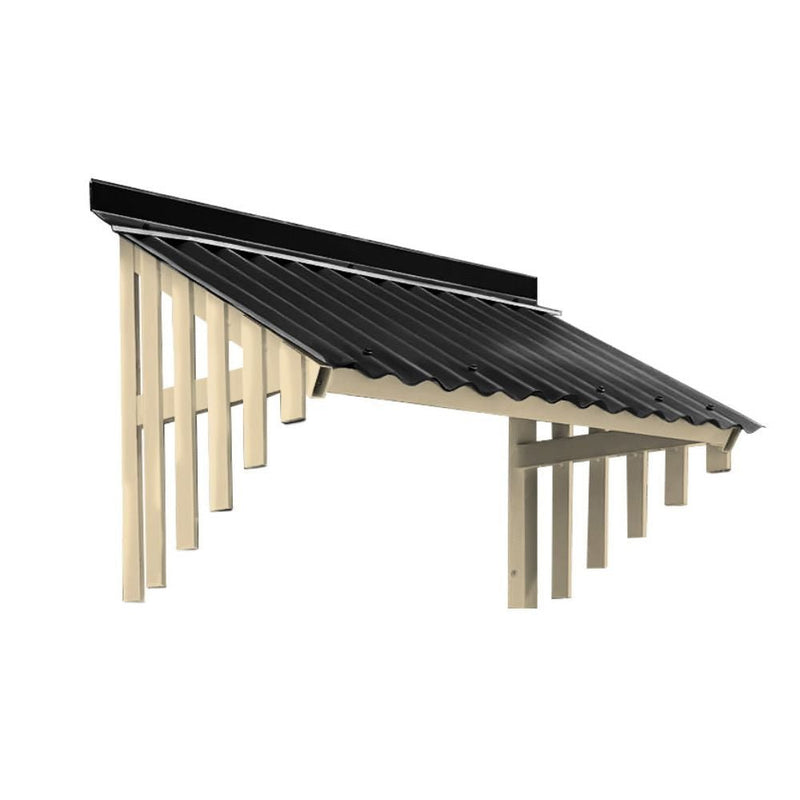

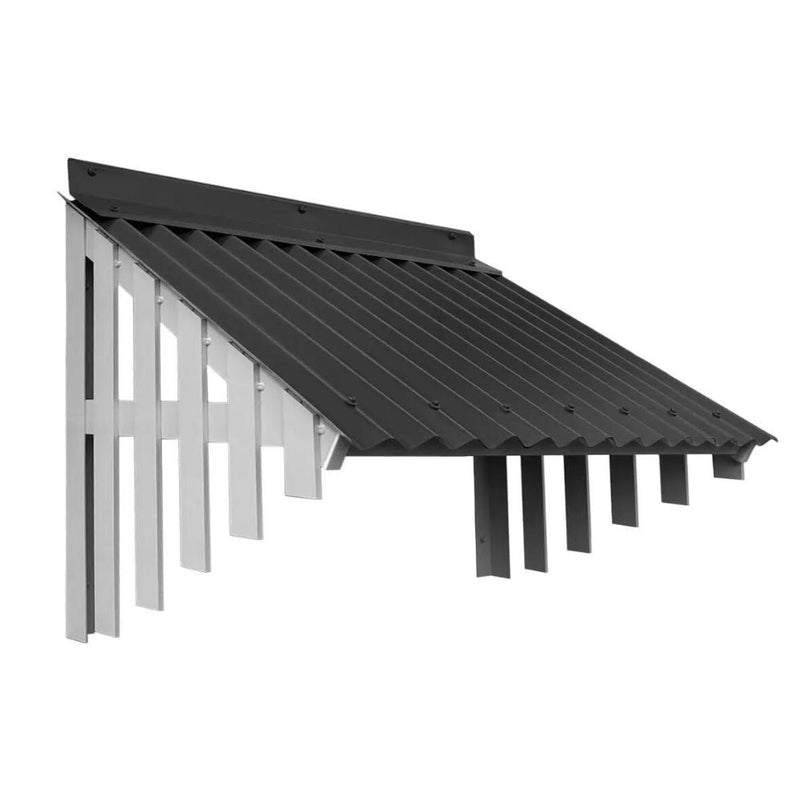

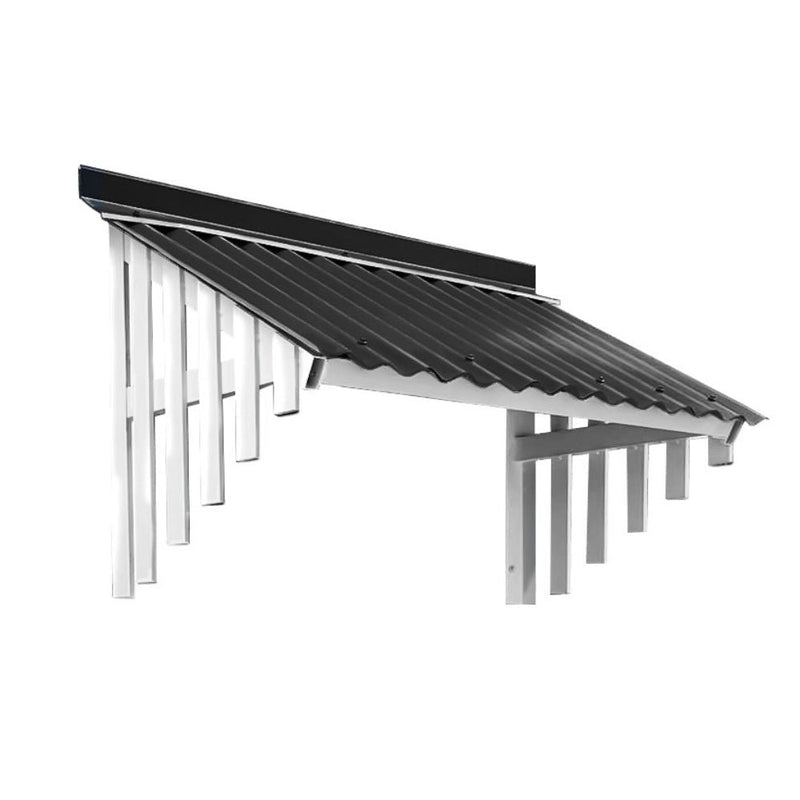

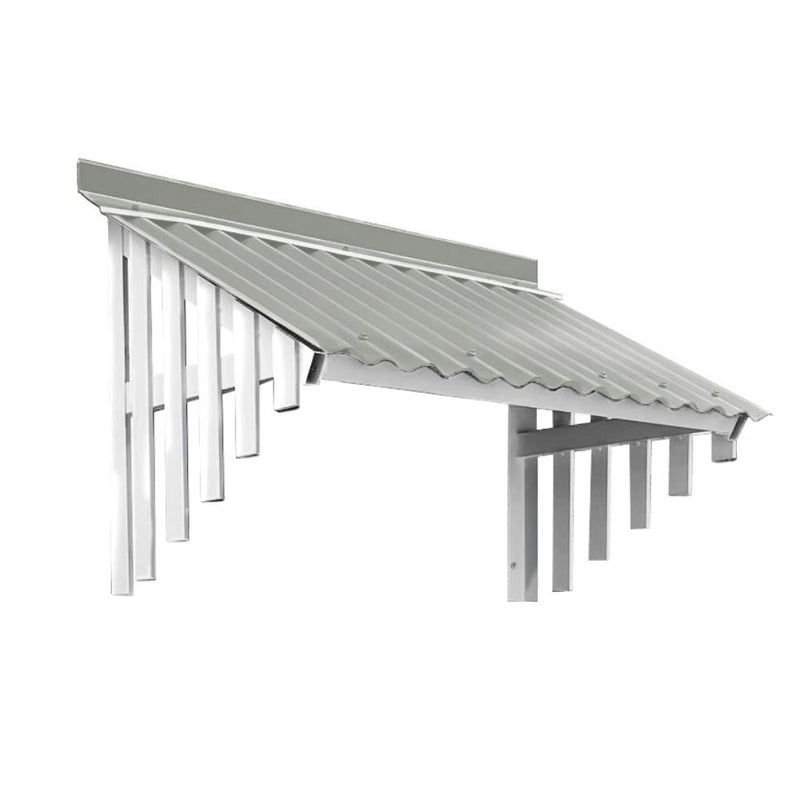

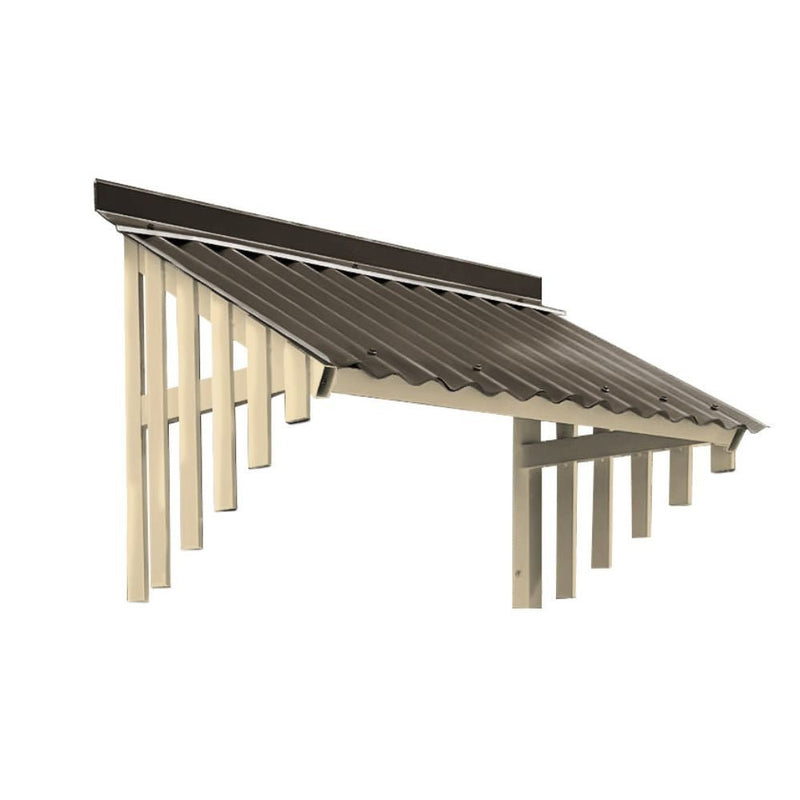

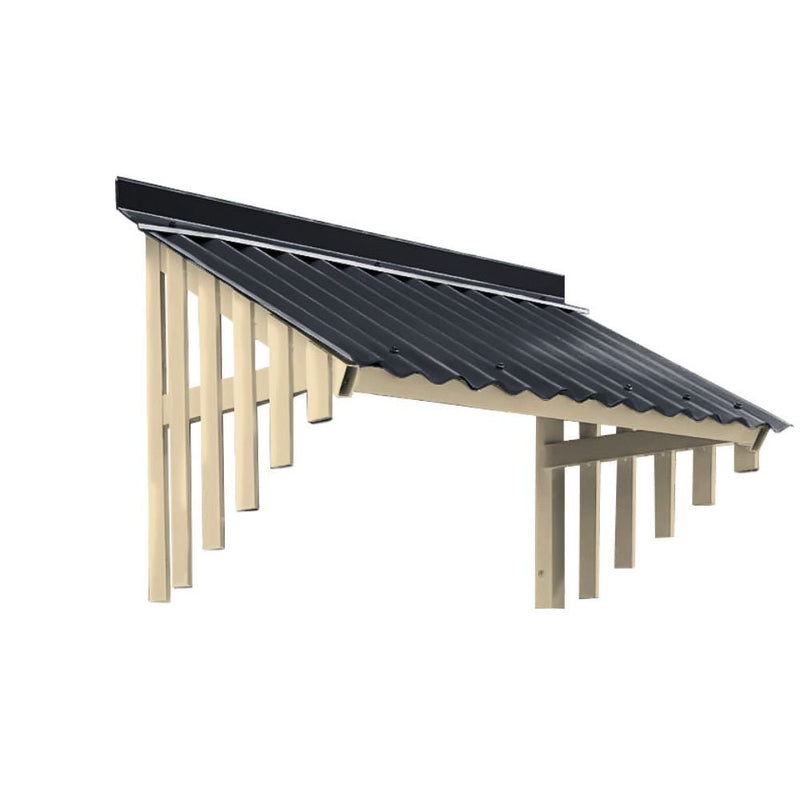

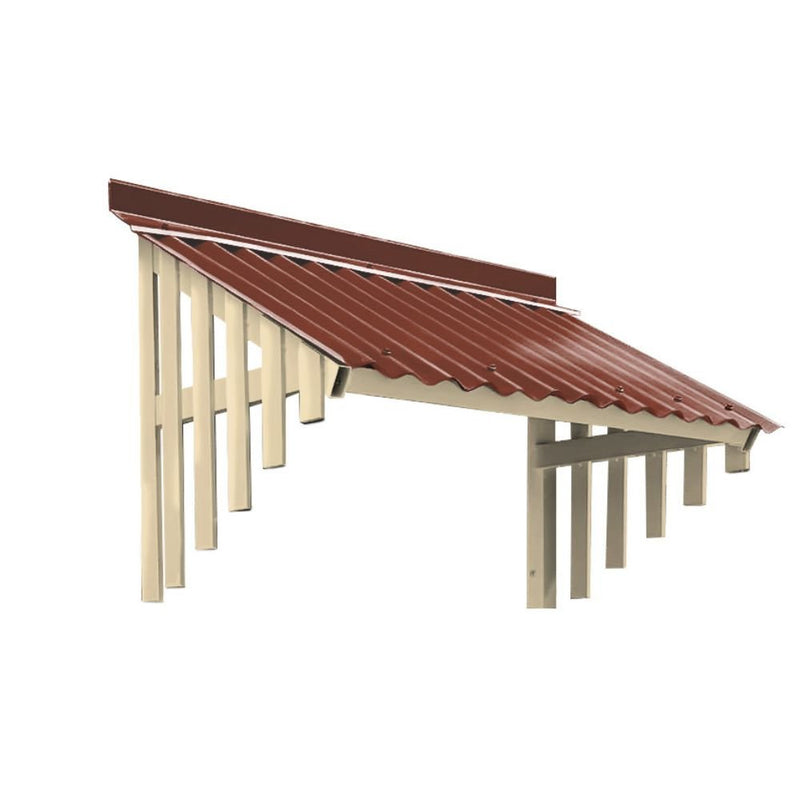

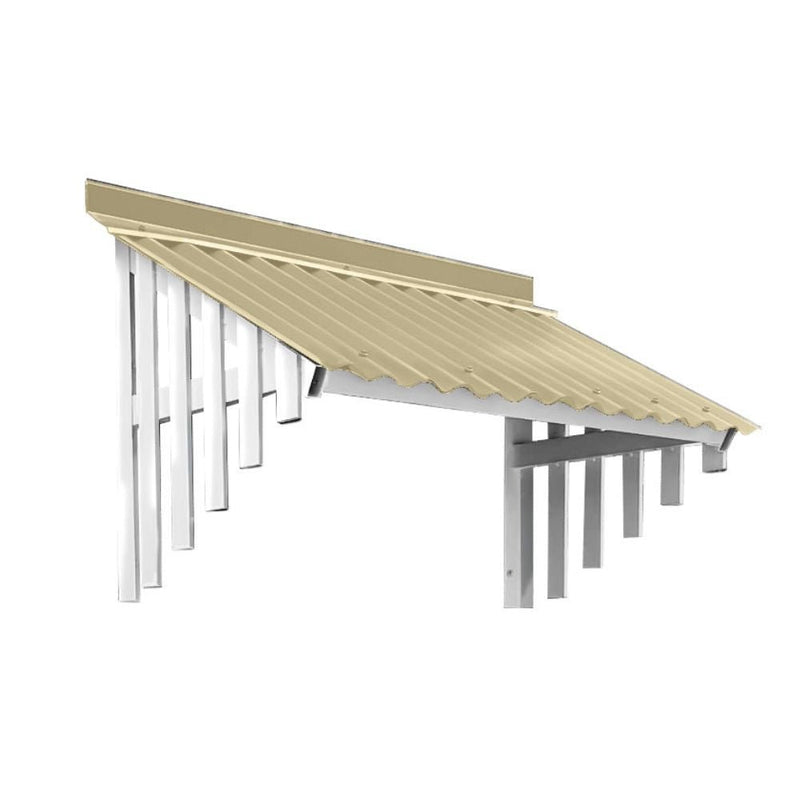

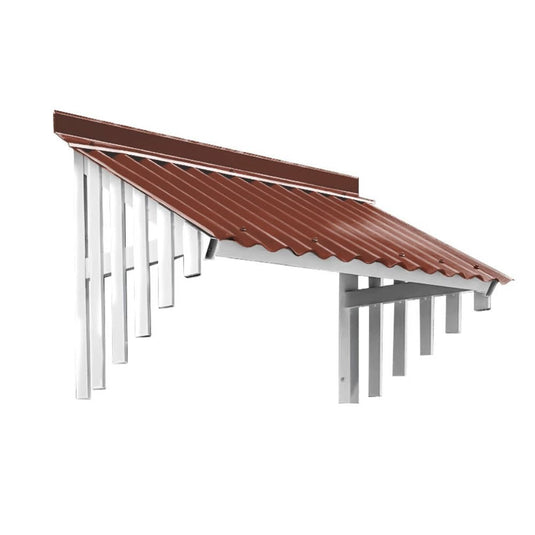

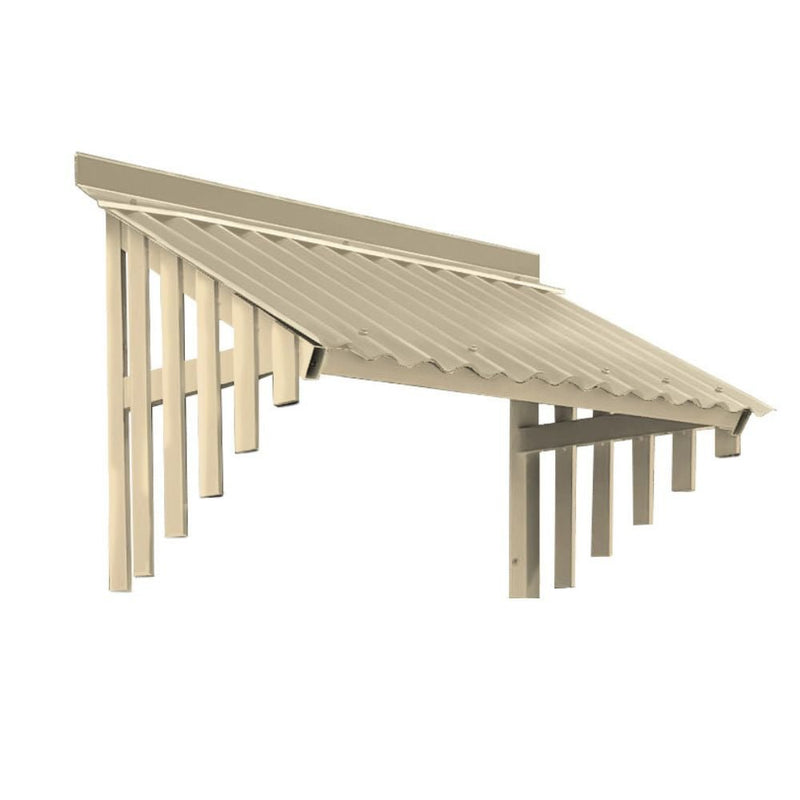

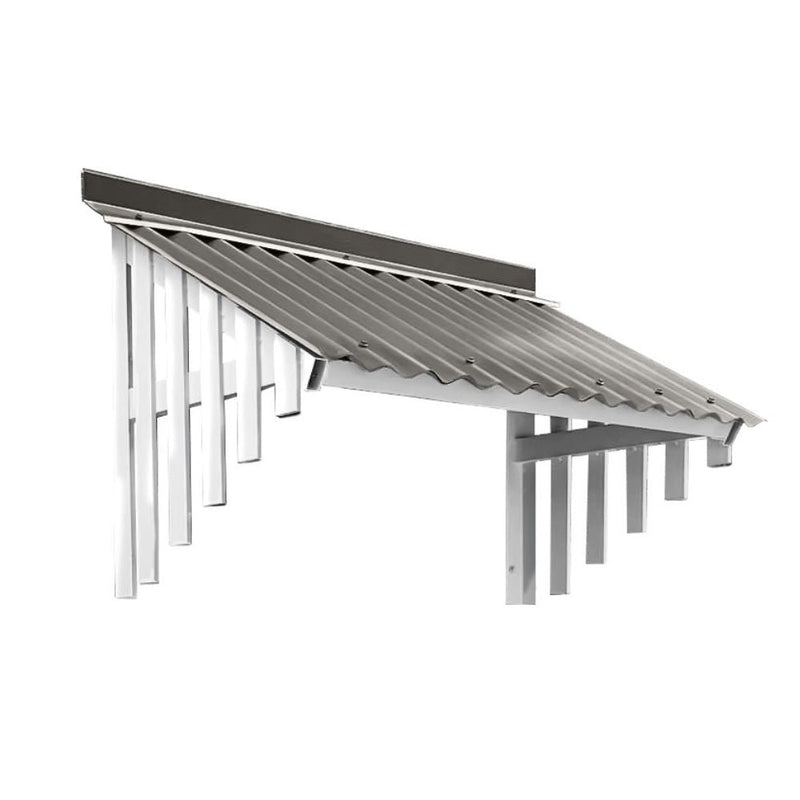

Crafted with precision, our window hoods feature robust aluminium welded brackets topped with premium COLORBOND® roofing and flashing, ensuring a perfect match for the iconic Australian colonial and Queenslander homes.
Beyond their visual appeal, our window hoods serve a vital function by significantly reducing radiant heat transfer through windows and doors, thus keeping your home cooler naturally. This not only contributes to a more comfortable living environment but also translates to substantial cost savings by reducing your reliance on artificial cooling systems.
Specifications:
- Hood roof pitch is 30 degrees.
- Internal span is 100mm less than cover
- Colorbond Custom Orb sheet length is 700mm

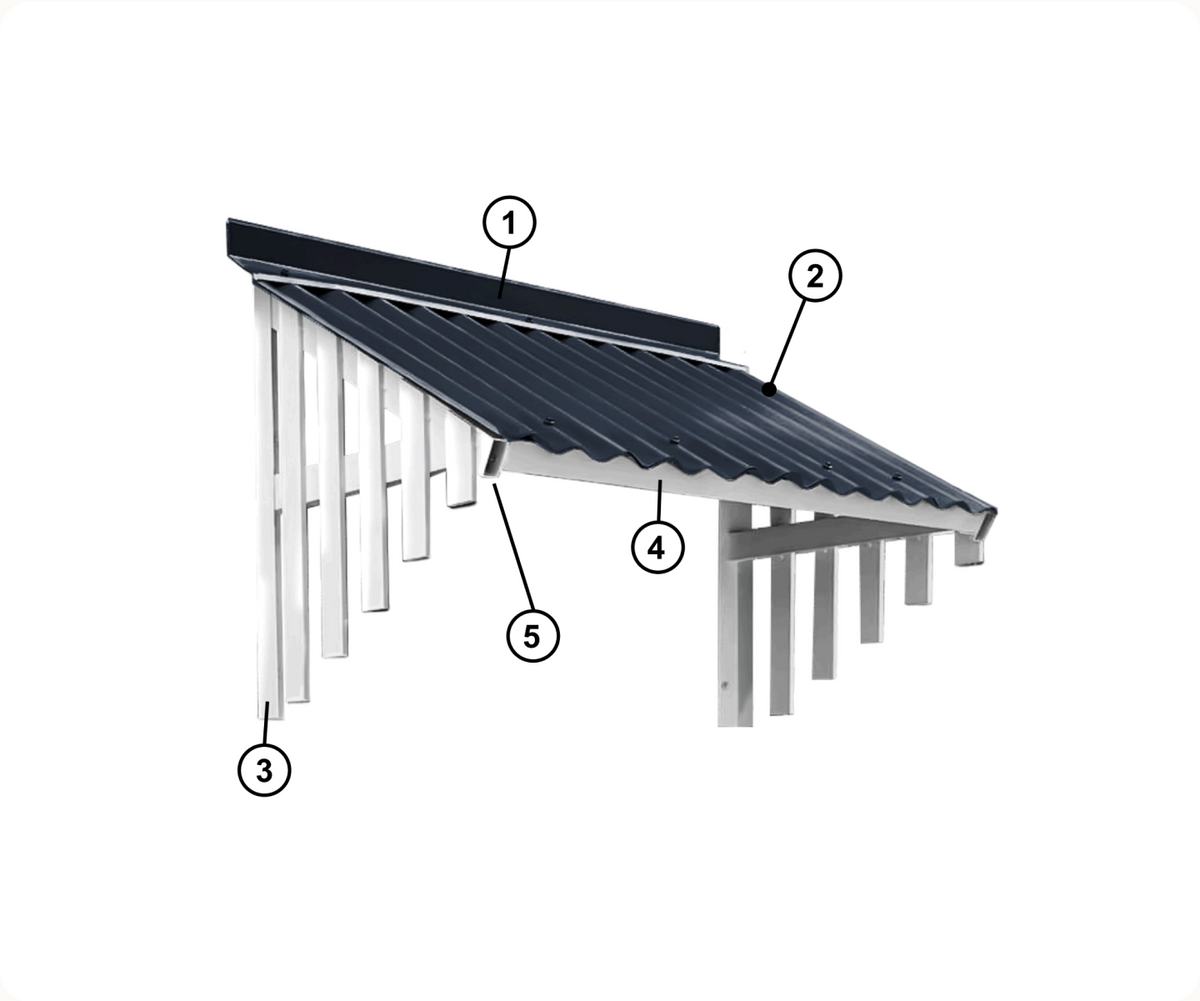

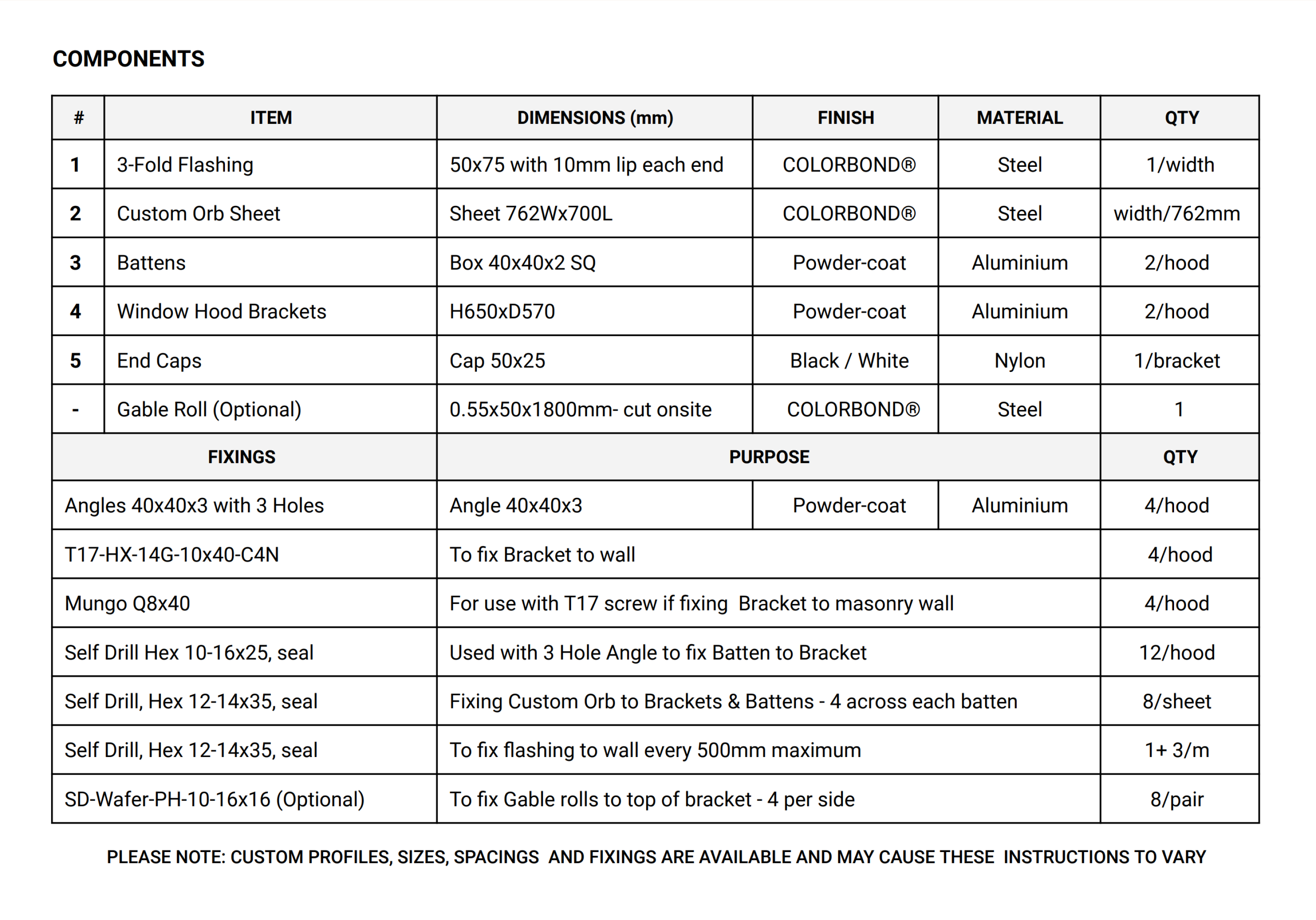

ITEM |
DIMENSIONS |
FINISH |
MATERIAL |
QTY |
---|---|---|---|---|
Brackets |
650Hx567W |
Powder Coat |
Aluminium 6060 T5 |
1 Pair |
Battens |
40x40x2 SQ Box |
Powder Coat |
Aluminium 6060 T5 |
2
|
Angles with 3 Holes |
40x40x3 |
Powder Coat |
Aluminium 6060 T5 |
4
|
Custom Orb Sheets |
700Lx762W |
COLORBOND® |
COLORBOND® Steel |
Round up width/762
|
Flashing 3 Fold |
82x52 x panel width |
COLORBOND® |
COLORBOND® Steel |
1
|
Caps | 50x25 | Black | Nylon | 2 |
PLEASE NOTE IN YOUR ORDER COMMENTS WHAT WALL MATERIAL YOU ARE FIXING INTO. EG. TIMBER OR MASONRY SO WE CAN SEND CORRECT FIXING SCREWS
FIXINGS |
PURPOSE |
QTY |
---|---|---|
T17-HX-14G-10x40mm |
Timber Screw Hex 14G- 10 x 40mm - Fixing Colonial Bracket to wall |
4 |
MQ8x40 - Mungo 8x40 |
Use with Timber Screws if installing in masonry |
4 |
SD-HX-10-16x16, seal |
Self Drilling Hex Screw 10-16x16 with seal - Fixing rails to side Brackets |
12 |
SD-HX-12-14x35, seal |
Fixing Custom Orb to brackets & Battens - 5 across each batten |
10 per sheet |
T17-HX-14G-10x40mm |
Timber Screw Hex 14G- 10 x 40mm - Flashing to wall |
Every 4th rib
|
